LDT84-C012-KP01
Classic Design Single Screen Mechanical Spring Gaming Monitor Arm
For Most 17” to 40” Monitors

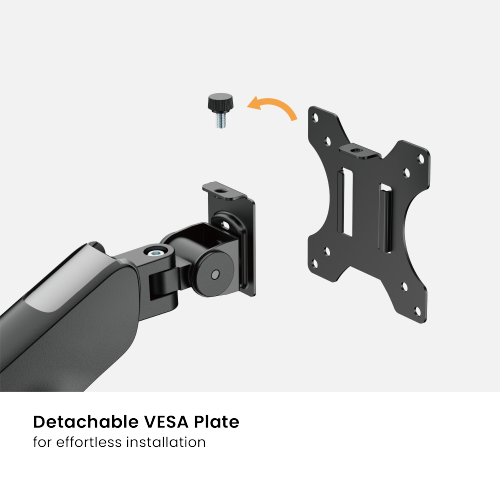

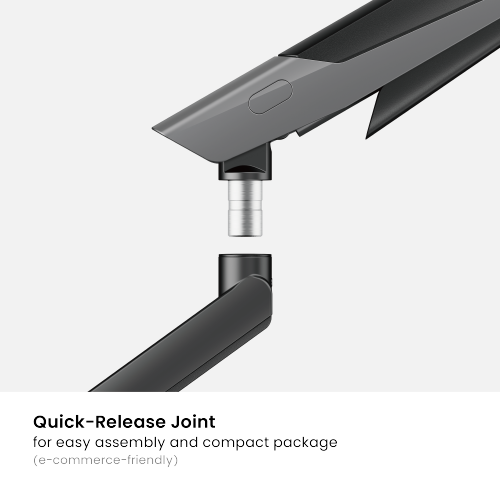

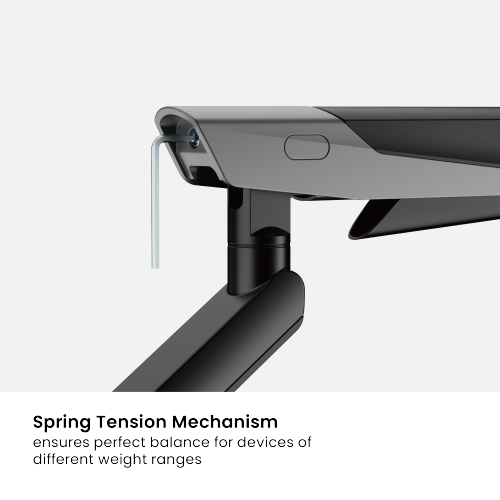

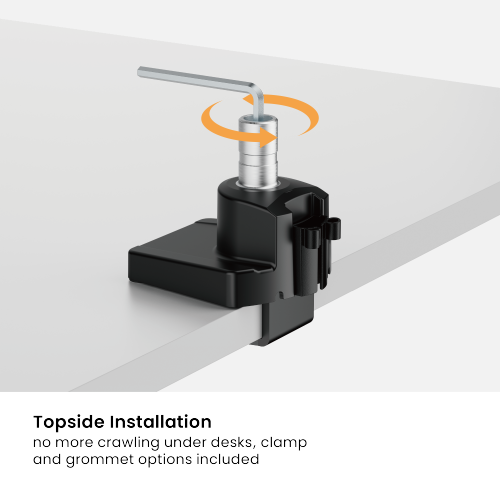

This model has a simple, classic design which makes it fit in with your gaming style room or office place. Whether it's a small light screen or a big heavy screen, the spring tension mechanism can keep a perfect balance to ensure user’s experience. Wide adjustment ranges of tilting and swiveling also provide flexibility and give users an optimum viewing position. Besides, the topside installation design allows users to install without crawling under desks. The detachable VESA plate and quick-release joint also help an effortless assembly.
Color:
Matte Black & Titanium Grey
Matte Black & White
- SPECIFICATIONS
Product Category |
Mechanical Spring Monitor Arm |
Rank |
Standard |
Material |
Aluminum,Steel,Plastic |
Surface Finish |
Powder Coating |
Color |
Matte Black & Titanium Grey,Matte Black & White |

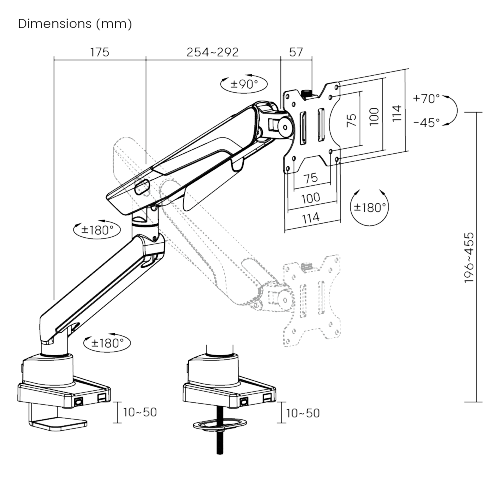

Dimensions |
115x555x520mm (4.5"x21.9"x20.5") |
Fit Screen Size |
17"-40" |
Fit Curved Monitor |
Yes |
Screen Quantity |
1 |
Weight Capacity (per screen) |
2~12kg (4.4lbs~26.4lbs) |
Weight Capacity for Curved Screen (per screen) |
2-11kg (4.4lbs-24.2lbs) |
VESA Compatible |
75x75,100x100 |
Tilt Range |
+70°~-45° |
Swivel Range |
+90°~-90° |
Screen Rotation |
+180°~-180° |
Arm Full Extension |
467mm (18.4") |
Installation |
Clamp,Grommet |
Suggested Desktop Thickness |
Clamp:10~50mm Grommet:10~50mm (Clamp:0.39"~2" Grommet:0.39"~2") |
Quick Release VESA Plate |
Yes |
Cable Management |
Yes |
Accessory Kit Package |
Normal/Ziplock Polybag,Compartment Polybag |
