LDT95-C012P
Atlas Neo Gaming Pole-Mounted Monitor Arm
Unmatched strength for screens up to 57”, 30kg (66lbs)
The Heavy-Duty Gaming Monitor Arm is engineered for ultrawide monitors up to 57" and 30kg (66lbs), meeting the rising demand for high-performance gaming setups. Its innovative head structure, featuring a built-in one-way bearing, ensures friction-free tilt adjustments for heavy screens. The futuristic design aligns seamlessly with gaming aesthetics, while the topside installation simplifies the setup process by eliminating the need to work underneath desks. A perfect solution for stable and stylish monitor support in gaming environments.
Color:

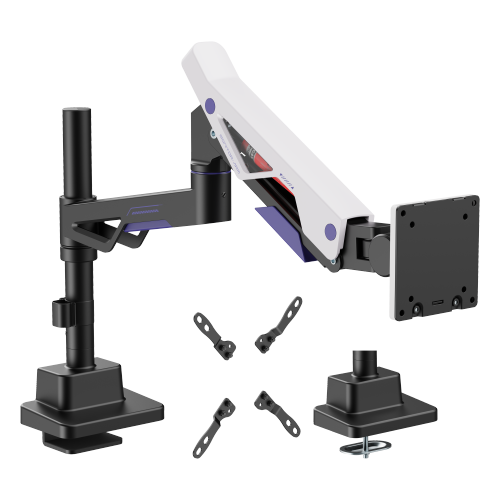

Matte Black & White

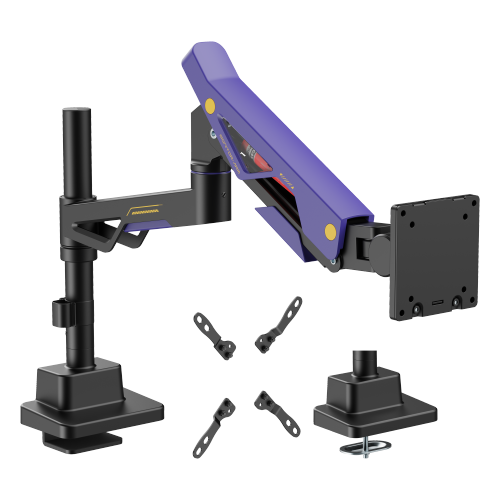

Matte Black & Purple
- Support weight up to 30kg (66 lbs): easily reposition large curved/flat monitors

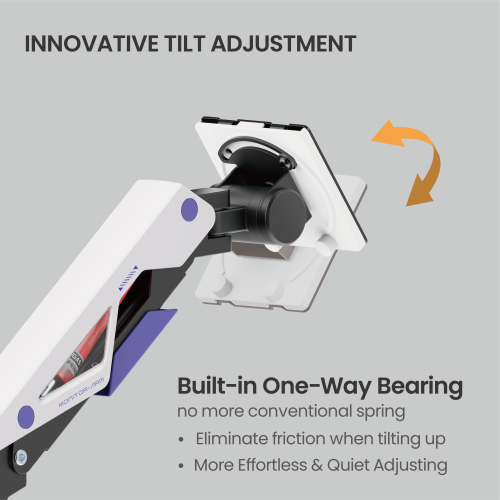

- One-Way Bearing Head Tilting Structure: eliminates friction when tilting for effortless adjustment

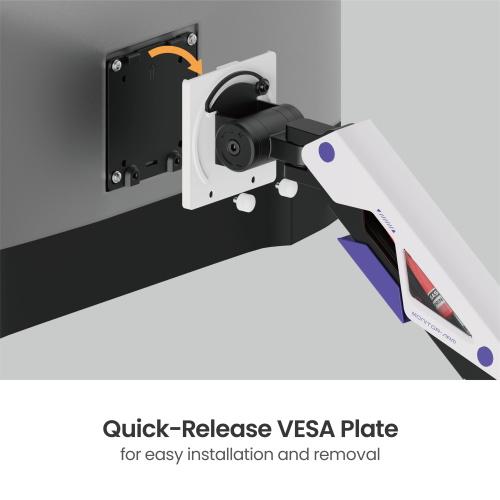

- Detachable VESA Plate Design: enables easy installation

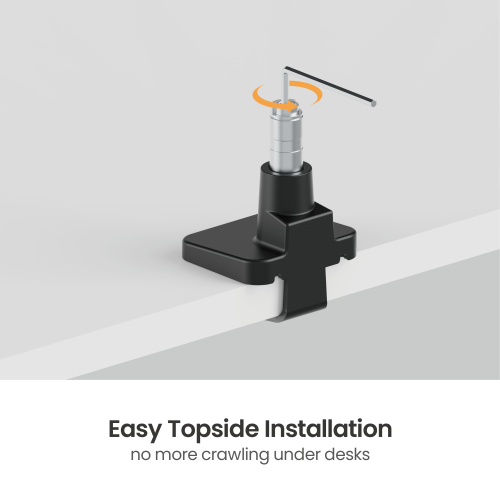

- Installs from Top Side: installs entirely from above the desk surface
- Freely Adjusting Height: for an optimal ergonomic position
- 360° Rotary VESA Plate: for more viewing experience
- Swivel Ability: for multiple screen viewing angles
- Free-Tilting Design: makes easy forward or backward adjustment for better viewing and reduced glare
- SPECIFICATIONS
- BROCHURE
Product Category |
Gas Spring Monitor Arm |
Rank |
Standard |
Material |
Aluminum,Steel,Plastic |
Surface Finish |
Powder Coating |
Color |
Matte Black & White,Matte Black & Purple |

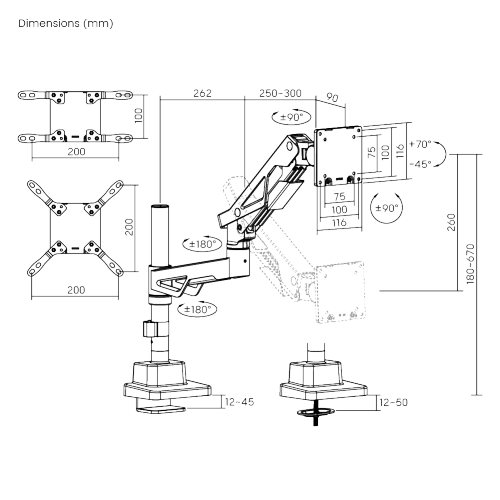

Dimensions |
156x630x710mm (6.1"x24.8"x28") |
Fit Screen Size |
24"-57" |
Fit Curved Monitor |
Yes |
Screen Quantity |
1 |
Weight Capacity (per screen) |
2~30kg (4.4lbs~66lbs) |
Weight Capacity for Curved Screen (per screen) |
2~24kg (4.4lbs~52.8lbs) |
VESA Compatible |

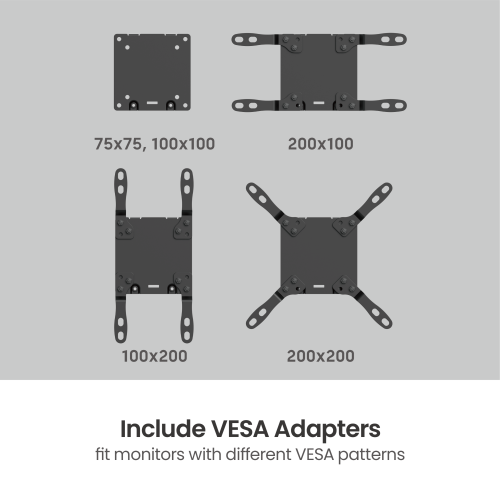

75x75,100x100,100x200,200x100,200x200 |
Tilt Range |
+70°~-45° |
Swivel Range |
+90°~-90° |
Screen Rotation |
+90°~-90° |
Arm Full Extension |
562mm (22.1") |
Pole Height |
388mm (15.3" ) |
Installation |
Clamp,Grommet |
Suggested Desktop Thickness |
Clamp:12~45mm Grommet:12~50mm (Clamp:0.47"~1.8" Grommet:0.47"~2") |
Quick Release VESA Plate |
Yes |
Cable Management |
Yes |
Accessory Kit Package |
Normal/Ziplock Polybag,Compartment Polybag |
Product Category |
Gas Spring Monitor Arm |
Rank |
Standard |
Material |
Aluminum,Steel,Plastic |
Surface Finish |
Powder Coating |
Color |
Matte Black & White,Matte Black & Purple |
Dimensions |
156x630x710mm (6.1"x24.8"x28") |
Fit Screen Size |
24"-57" |
Fit Curved Monitor |
Yes |
Screen Quantity |
1 |
Weight Capacity (per screen) |
2~30kg (4.4lbs~66lbs) |
Weight Capacity for Curved Screen (per screen) |
2~24kg (4.4lbs~52.8lbs) |
VESA Compatible |
75x75,100x100,100x200,200x100,200x200 |
Tilt Range |
+70°~-45° |
Swivel Range |
+90°~-90° |
Screen Rotation |
+90°~-90° |
Arm Full Extension |
562mm (22.1") |
Pole Height |
388mm (15.3" ) |
Installation |
Clamp,Grommet |
Suggested Desktop Thickness |
Clamp:12~45mm Grommet:12~50mm (Clamp:0.47"~1.8" Grommet:0.47"~2") |
Quick Release VESA Plate |
Yes |
Cable Management |
Yes |
Accessory Kit Package |
Normal/Ziplock Polybag,Compartment Polybag |
