LDT95-C012UCP

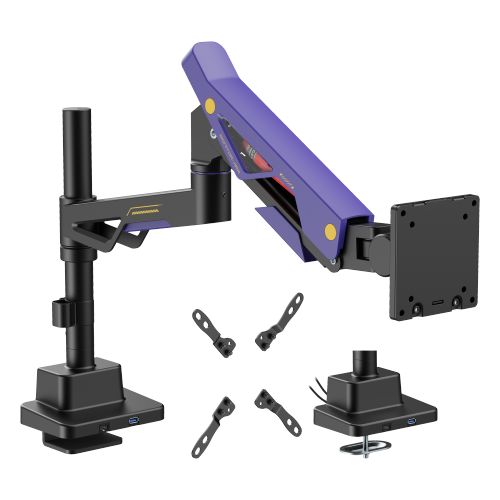

Atlas Neo Gaming Pole-Mounted Monitor Arm with USB-A & USB-C Ports
Unmatched strength for screens up to 57”, 30kg (66lbs)
The Heavy-Duty Gaming Monitor Arm is engineered for ultrawide monitors up to 57" and 30kg (66lbs), meeting the rising demand for high-performance gaming setups. Its innovative head structure, featuring a built-in one-way bearing, ensures friction-free tilt adjustments for heavy screens. Smart base with USB-A & USB-C ports supports charging and data transfer for enhanced gaming experience. The futuristic design aligns seamlessly with gaming aesthetics, while the topside installation simplifies the setup process by eliminating the need to work underneath desks. A perfect solution for stable and stylish monitor support in gaming environments.
Color:

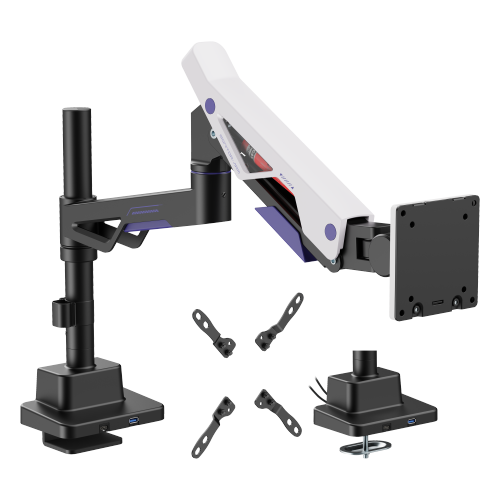

Matte Black & White
Matte Black & Purple
- Support weight up to 30kg (66 lbs): easily reposition large curved/flat monitors
- One-Way Bearing Head Tilting Structure: eliminates friction when tilting for effortless adjustment
- Detachable VESA Plate Design: enables easy installation
- Installs from Top Side: installs entirely from above the desk surface
- Freely Adjusting Height: for an optimal ergonomic position
- 360° Rotary VESA Plate: for more viewing experience
- Swivel Ability: for multiple screen viewing angles
- Free-Tilting Design: makes easy forward or backward adjustment for better viewing and reduced glare
- Smart Base with USB-A & USB-C Ports: snap-off plates on the base provide data throughput or to charge devices
- SPECIFICATIONS
- BROCHURE
Product Category |
Gas Spring Monitor Arm |
Rank |
Premium |
Material |
Aluminum,Steel,Plastic |
Surface Finish |
Powder Coating |
Color |
Matte Black & White,Matte Black & Purple |

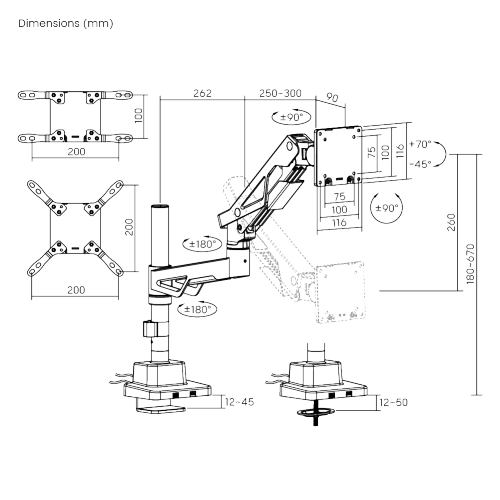

Dimensions |
156x630x710mm (6.1"x24.8"x28") |
Fit Screen Size |
24"-57" |
Fit Curved Monitor |
Yes |
Screen Quantity |
1 |
Weight Capacity (per screen) |
2~30kg (4.4lbs~66lbs) |
Weight Capacity for Curved Screen (per screen) |
2~24kg (4.4lbs~52.8lbs) |
VESA Compatible |
75x75,100x100,100x200,200x100,200x200 |
Tilt Range |
+70°~-45° |
Swivel Range |
+90°~-90° |
Screen Rotation |
+90°~-90° |
Arm Full Extension |
562mm (22.1") |
Pole Height |
388mm (15.3" ) |
Installation |
Clamp,Grommet |
Suggested Desktop Thickness |
Clamp:12~45mm Grommet:12~50mm (Clamp:0.47"~1.8" Grommet:0.47"~2") |
Quick Release VESA Plate |
Yes |
USB Port |
1xUSB 3.0 Port,1xTYPE-C |
Cable Management |
Yes |
Accessory Kit Package |
Normal/Ziplock Polybag,Compartment Polybag |
